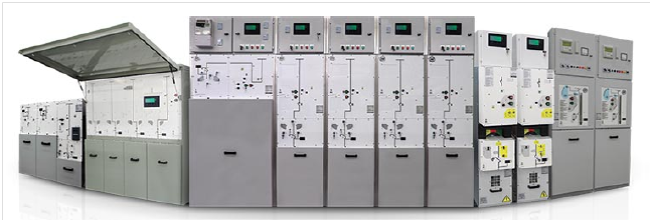

Complete product range which can be equipped with SF6 disconnector or Switch disconnector and Vacuum circuit breaker up to 33kV. The Ring Main Units (RMU) suitable for all switching operations up to 40.5 kV at primary & secondary distribution networks.
Next generation of GIS RMUs, achieving impressive performances and granting easy works to the operator. New concept of super-compact Disconnector + Vacuum CB combined unit range suitable for all the switching operations in 7.2kV, 12kV, 17.5kV, 24kV & 33kV.
IAC 25kA 1s A-FLR
Up to 33kV
25kA 3s
No Current Derating up to 55°

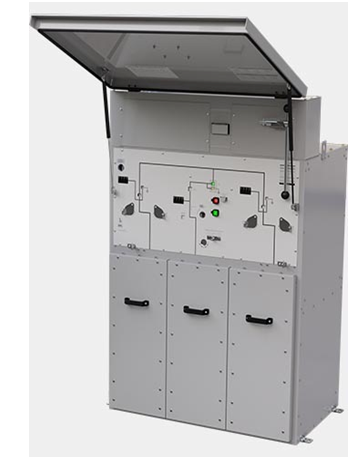

Indoor/Outdoor Version with same dimensions
The most compact GIS RMU with 2 Switch-Disconnector units + 1 CB unit in only @ 1090mm
